Medical Push-pull Connector Lemo EGG FGG 2B 6+1 Metal 6 Signal 1 Liquid Input Medical Panel Mounting Connector

Brand Name : Ebuddy

Model Number : EGG.2B.6+1.CLL

Certification : CE.ROHS

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : Western Union, T/T，Paypal

Supply Ability : 10000pcs per month

Packaging Details : pp pag

Series : LEMO FGG/EGG

Size : Lemo 2B

Shell Style : Fixed receptacle,nut fixing

Endurance : 5000 mating cycles

IP Rating : IP50

Contact type : Solder

Insulator material : PPS

Max matings : 5000 Times

Application : medical applications,Electronic instrument,war industry product,etc

Max contact R : 6.5mΩ

Contact Now

Medical push-pull Connector Lemo EGG FGG 2B 6+1 Metal 6 signal 1 liquid input medical panel mounting connector



Description:



Medical Push-pull Connector Lemo EGG FGG 2B 6+1 Metal 6 Signal 1 Liquid Input Medical Panel Mounting Connector

Part no.
EGG.2B.6+1.CLL
Title.
6 +1 metal Female
Spec.
2B
Series
2B
Mechanical Details:
Shell Style
Fixed receptacle,nut fixing
Key
1 key(alpha=0°；plug: male contacts, receptacle:female contacts)
Housing material
Brass(Chrome plated)shell and collet nut;Brass
(Nickel plated)latch sleeve and mid pieces
Housing color
Grey-White,
Endurance
5000 mating cycles
Operation temp.(min)

-40℃
Operation temp.(max)

200℃
Humidity(max)

<=95%(at 60℃/140F)
IP Rating
IP 50

Electronic Details:
Insert
6 Low Voltage
Configuration
Brass gold plated
Insulator material
PPS
Contact type
Solder
Max matings
5000
Salt spray corrosion
>72 hr
Shielding
75dB(10M Hz)
Shielding
40dB(1G Hz)
Contact Dia
Φ0.7mm
Solder Dia
Φ1.2mm
Max contact R
6.5mΩ
Voltage(contact-shell)
AC 1350V
Voltage(contact-contact)
AC 1250V
Rated Current
7A(AC/DC)





Application :



  • Signal transmission,
  • Medical Equipment ,
  • Audio / Video,
  • Test and Measurement,
  • Communications product line.

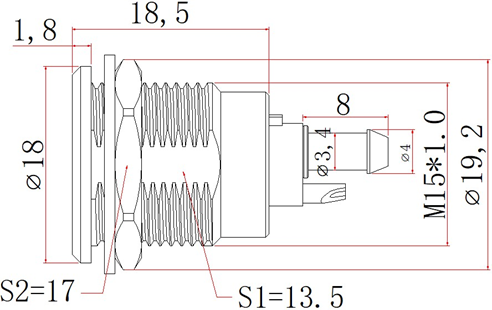

Size Drawing:



Medical Push-pull Connector Lemo EGG FGG 2B 6+1 Metal 6 Signal 1 Liquid Input Medical Panel Mounting Connector           Medical Push-pull Connector Lemo EGG FGG 2B 6+1 Metal 6 Signal 1 Liquid Input Medical Panel Mounting Connector





Warranty Policy: 1year warranty time​:



For all our connectors and cables, we supply 1 year warranty time, any problems in warranty time:

  • 1. we will fix it or replace new brand one
  • 2. We will bear both sides shipping cost.



Why Ebuddy:



  • Complete compatible with lemo/odu/fischer/ connector with lower cost.
  • ROHS,ISO9001:2008,UL standard.
  • Short delivery time:7-10 days normally.
  • Factory can produce 5000 set/week.
  • Samples offer to check first.
